Electric Lift Lightning Rod Operation
The Electric Lift Lightning Rod for lightning protection, requires electric power to complete the lifting operation. One person sets the lifting rod in a certain position, and then three guy wires are fixedly linked to the buckle at the top of the lightning rod. Then, the lightning rod is slowly raised and the wires are slowly released. Raise the lightning rod to the highest position, and according to the surrounding environment and the position of the lightning rod, within a range of 3-5 meters, hit three ground pegs. Then tighten the guy wire, fix the buckle on the lightning rod with the guy wire buckle, and connect the guy wire to the ground peg. After both sides are fixed, observe the stability of the telescopic mast and make slight adjustments. It includes three ground pegs, three guy wires, and a lifting hand winch. Du ring the lifting process, shake it evenly and lift it to the top without excessive force to prevent strong twisting and breaking of the guy wire.
Electric Lift Lightning Rod Technical Parameter
Extended height | 3-30 meters |
Closed height | 2200mm |
Outer pipe diameter | 120mm |
Inner pipe diameter | 40mm |
Number of sections | 8 |
Dead weight | 70kg |
Material | Magnesium aluminum alloy/Carbon fiber/ FRP |
Maximum load capacity | 3-30KG |
Drive mode | Manual-electric integrated |
Wind resistance | Level 8-10 |
Color | Customizable |

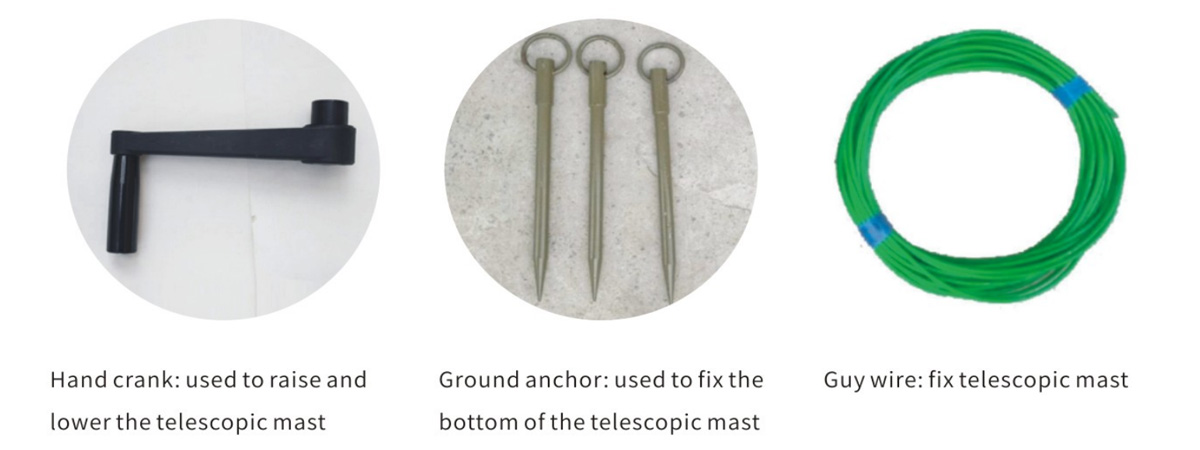

Electric Lift Lightning Rod Accessories
There are 9 buckles on the telescopic mast, divided into three sides, corresponding to three guy wires, as shown in the picture, which are the connection method between the guy wire and the buckle and the telescopic mast lightning rod
The hand crank is fixed at the position of the telescopic mast and shake it i at a constant speed. If there is any jamming, move it upward slowly. Do not move it up or down forcefully. The electric plug is located at the bottom and can be powered on. By using the matching remote control switch to ensure that the telescopic mast lifts steadily.
Electric Lift Lightning Rod Specifications
Type | Retracted Height(M) | Raised Height(M) | Diameter(mm) | Weight of Hand Crank(kg) | Weight of Motorized(kg) | |||
Min | Max | Al.Alloy | Carbon Fiber | Al.Alloy | Carbon Fiber | |||
HDFL-5S | 1.6 | 5 | 50 | 80 | 23 | 18 | 35 | 30 |
HDFL-6S | 1.6 | 6 | 60 | 105 | 24 | 20 | 38 | 34 |
HDFL-8S | 2.2 | 8 | 60 | 105 | 26 | 22 | 45 | 41 |
HDFL-10S | 2.2 | 10 | 50 | 105 | 28 | 24 | 55 | 50 |
HDFL-12S | 2.25 | 12 | 40 | 105 | 30 | 30 | 62 | 56 |
HDFL-14S | 2.3 | 14 | 40 | 120 | 42 | 40 | 75 | 67 |
HDFL-15S | 2.4 | 15 | 40 | 140 | 47 | 44 | 80 | 71 |
HDFL-16S | 2.45 | 16 | 40 | 160 | 51 | 47 | 84 | 74 |
HDFL-18S | 2.7 | 18 | 50 | 160 | 54 | 49 | 90 | 79 |
HDFL-20S | 2.7 | 20 | 40 | 160 | 57 | 52 | 96 | 84 |
HDFL-30S | 2.9 | 30 | 40 | 220 | 130 | 125 | 220 | 210 |
